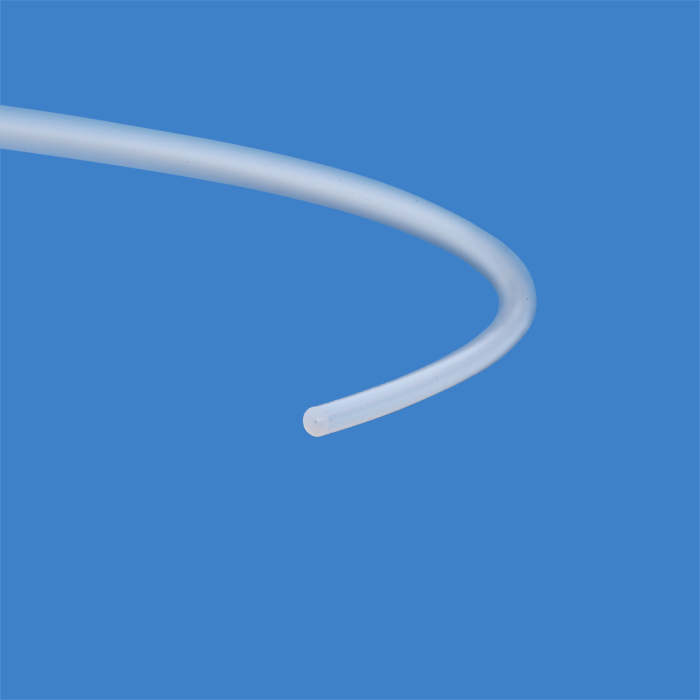

Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-07-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering excellent chemical resistance, flexibility, and consistent dimensional performance over extended lengths.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination risk and compatibility with sensitive analytical workflows.
Precision Dimensions – Optimized for Low Flow Applications
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Ideal for low flow rates and precise solvent delivery over longer distances
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Suitable for extended solvent routing and stable transfer systems
Virgin PTFE Construction – High Purity & Inertness
Made from 100% virgin PTFE
No additives (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and high‑sensitivity analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and extended-use laboratory environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores that allow slight gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing if gas impermeability is critical
Flexible & Durable Design
Flexible for long‑distance routing and installation
Durable for repeated handling and use
Natural translucent color allows visual flow confirmation
✅ Supports efficient system setup and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste lines across longer bench distances
Low‑pressure fluid routing systems
General laboratory tubing applications
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure connections
